HSB-100

Brief Description

HSB-100 tri-layer maintanence-free bushing have a base of lower carbon steel, onto which a porous bronze layer is sintered. PTFE mixtures are impregnated into the intersice of this bronze layer after rolling process completed. HSB-100 has good physical & mechanical properties, also has certainly chemical properties. It is suitable for rotary, oscillating movement with performance of self-lub. Anti-wear, lower firction, lower noise.

Structure

After rolling process completed, PTFE mixtures are filled in intersice of bronze layer. Under normal operation, Part of PTFE mixture on top layer will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coe. and protect the mating shaft.
2 Porous Bronze layer;
The layer provides bonded strength of Self-Lub. Layer.
3 Steel Backing
The layer provides load & thermal conductivity
4 Copper / Tin layer

Material Characteristics

Max. Load Capacity P
Static Load N/mm2 250
Dynamic Load N/mm2 140
Max. Speed V
Dry Running m/s 2.0
Hydrodynamic Operation m/s >2
Max. PV Value
Short-Term Operation N/mm2 · m/s 3.6
Continuous Operation N/mm2 · m/s 1.8
Coefficient of Friction μ 0.03~0.25
Operation Temperature Range -195~280
Thermal Conductivity W(m · k-1) 42
Coefficient of Thermal HSB-2pansion λST 11·10K-1

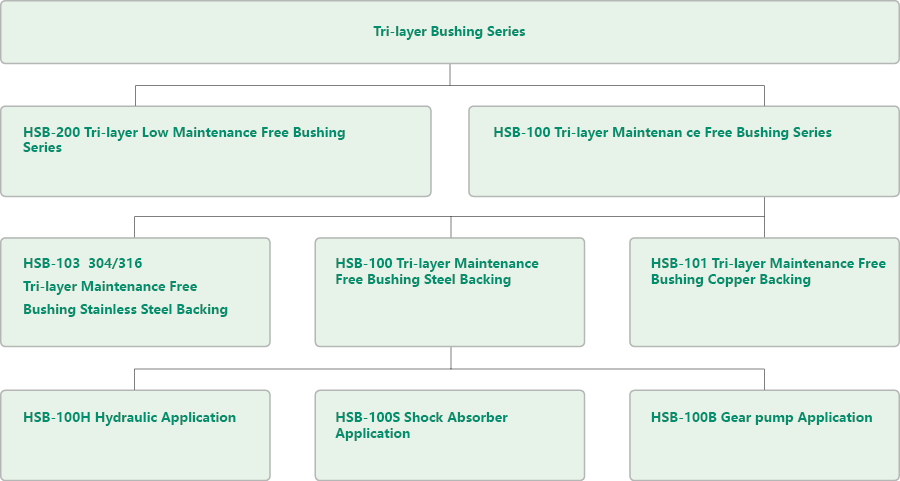

Materiace Category

Material Chemical Characteristic

Type Water Sea Water Air Alkaline Solutions NHSB-1tral Solutions Fuels & Lubricatis Strong Acid Weak Acid
HSB-100
HSB-100G
HSB-100H
HSB-100S
HSB-100B
HSB-100
304/316
HSB-200
★Good       □Common       ▲Poor
